95" to 105" Standard Lift-A-Deck II Beam

Standard Lift-A-Deck II Beam

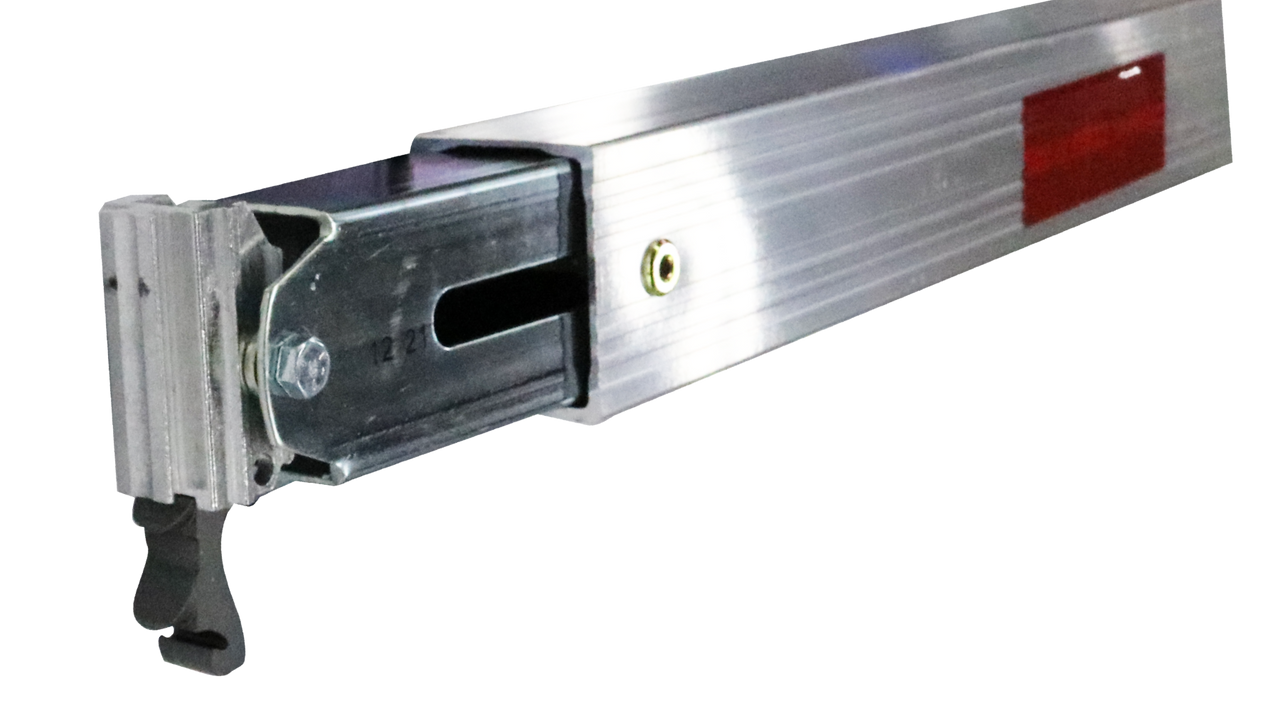

Ancra's standard LAD beam works seamlessly with our Lift-A-Deck II system and slides smoothly in the track without lubrication for long-lasting performance. Made with high-quality materials for both decking and shoring solutions, the standard LAD beam has plenty of strength to get the job done and can help make customizing cargo easy and efficient.

The standard LAD beam has a decking working load limit of 2,200 lbs. and a shoring working load limit of 2,200 lbs. The adjustment range for the beam is 95.1-in.—105.6-in.

Note: Cargo beams and Lift-A-Deck beams are rated at Working Load Limits (WLL) that are 1/3 of the breaking strength or failure load capacity of the beams. In order to account for dynamics and vibrations that are experienced during transit and avoid overloading the beams beyond the WLL rating, the actual weight of cargo supported by the beams should be reduced below the rated WLL value of the beam. The allowable weight of cargo supported by the beams should be factored down based on anticipated dynamic G-forces expected during transit. Consult trailer or truck body manufacturer for their recommended load capacity of secondary deck.
